Best Soft Top Gazebos: Netting, Curtains and Sizes Compared
Soft top gazebos are useful semi-permanent outdoor structures. They do more than a patio umbrella, though they take more work to set up and take down. They create an outdoor “room”, and with mosquito netting or curtains on the rails you get bug protection and some privacy as well.
A soft top gazebo is a steel or aluminum frame with a removable fabric roof, usually a two-tier vented canopy, with netting or curtains hung from rails under the roof. It is lighter and less permanent than a hardtop gazebo, and its makers expect you to take it down when bad weather is coming.
Our top pick is the Sunjoy Belcourt 11 x 13 ft (A101012400). It comes with both mosquito netting and privacy curtains, each on its own rail, and Sunjoy still sells it in the US.
What’s changed in this update: we can no longer show that any of our 2018 picks is still sold, so all five are gone (they’re listed under Previously recommended at the end). Every new pick is still sold by a maker that publishes its own anchoring or take-down guidance, and every spec comes from the maker. We also added a buying guide, an anchoring and weather section with a diagram, a soft top vs hard top section and an FAQ.
Our Picks at a Glance
Sunjoy Belcourt 11 x 13 ft with Netting and Curtains (A101012400)
A two-tier soft top with a black powder-coated steel frame, mosquito netting and four-side privacy curtains on separate rails.
Sunjoy Woodgrain Aluminum Soft Top Gazebo with Sunbrella Canopy, 11 x 13 ft (A101012801)
The premium choice: woodgrain-finish aluminum posts, galvanized steel parts and a Sunbrella canopy, with curtain rails ready for the netting or curtains you add.
Also on our list: a netting-only Sunjoy 10.5 x 13 ft two-tier, plus three gazebos we’ll box once we confirm current stock: the ABCCANOPY 11 x 13 ft double roof, the MASTERCANOPY 9 x 9 ft and the Sunjoy Havana hexagon (the gazebo we used to call the Madison).
Soft Top Gazebos: What To Look For
Size: overall vs post to post
The size in a gazebo’s name is usually the roof, and the space you can actually furnish is the distance between the posts. Sunjoy’s Belcourt, for example, has an 11 x 13 ft roof and 10 x 12 ft post to post. Measure your patio or deck against the overall footprint, then plan your table and chairs against the post-to-post number. Some makers publish both, and some publish only a size label.
Frame: steel or aluminum
Most soft tops use powder-coated steel. Sunjoy’s premium pick uses aluminum posts with galvanized steel parts instead. Powder coat protects steel until it gets chipped, so touch up any scratches that show bare metal with a rust-inhibiting paint (Sunjoy’s hexagon gazebo manual says the same).
Roof: two tiers and drainage
A two-tier roof leaves a vent gap between the tiers so air can escape, and several makers put mesh in that gap to keep bugs out. Drainage matters too. Sunjoy says drain holes or grommets “are for excess rain to prevent water from weighing down or puddling on the fabric”, but also that “your gazebo may or may not have” them, so check the model you’re buying.

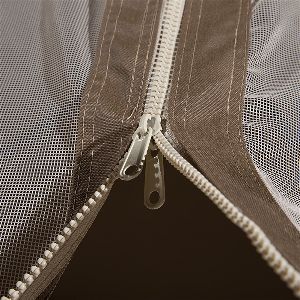

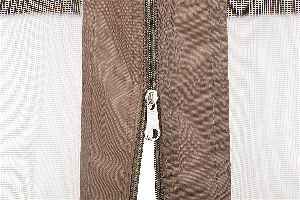

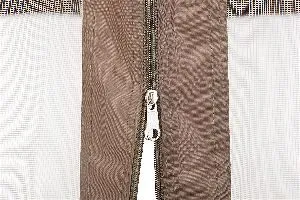

Netting, curtains and the second rail
Netting keeps out bugs, and curtains give you shade and privacy on one side. If you want both, look for a gazebo that includes both or has a separate rail for each, so you aren’t forced to hang curtains and netting on the same rod. Our gazebo side panels guide covers what you can add later and how each type attaches.

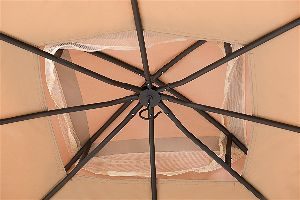

Ceiling hook
A center hook makes it easy to hang an electric lantern or a light. All four Sunjoy picks have one, and ABCCANOPY adds roof and corner hooks; MASTERCANOPY doesn’t mention one.
Replacement canopies
Fabric wears out long before a steel frame does. Sunjoy sells replacement canopies, netting and curtains by model number, so write down your gazebo’s item number when you buy it.
Anchoring hardware
Lawn stakes are often in the box, and deck or concrete hardware often isn’t. Sunjoy’s Belcourt page says its included accessories cover a lawn, not a wood or concrete surface. Budget for the right anchors before your gazebo arrives (more on that below).
Soft Top Gazebos at a Glance
All specs are from each maker’s product page or manual. These are the three picks with a buy link now; the other three get a buy box once we confirm stock.
| Gazebo | Size (maker) | Frame | Netting / curtains | Ceiling hook | Sold by |
|---|---|---|---|---|---|
| Sunjoy Belcourt 11 x 13 ft (A101012400) | 11 x 13 ft roof, 10 x 12 ft post to post | Black powder-coated steel | Both included, separate rails | Yes | Sunjoy |
| Sunjoy Sunbrella aluminum 11 x 13 ft (A101012801) | 13.1 x 11.0 ft overall | Aluminum posts, galvanized steel parts | Neither included; built-in curtain rails | Yes | Sunjoy |
| Sunjoy 10.5 x 13 ft 2-tier (A101012202) | 12.8 x 10.5 ft overall | Powder-coated steel | Netting included, no curtains | Yes | Sunjoy |
Soft Top Gazebo Reviews
1. Sunjoy Belcourt 11 x 13 ft Gazebo with Netting and Curtains (A101012400)
Belcourt is Sunjoy’s own name for this model; it uses it on the replacement netting and curtains it sells. The product page simply calls it the SUNJOY 11x13 Outdoor Patio Gazebo with Netting and Curtain. You get a black powder-coated steel frame, a ventilated two-tier roof in what Sunjoy calls a “breathable polyester fabric”, and corner fence panels.
This is the package most soft top shoppers are after: netting and privacy curtains in the box. Sunjoy’s manual hangs the netting on its own netting rods and the curtains on a separate upper rod, so you can close the curtains on the sunny side and leave the netting across every opening. Sunjoy describes the curtains as “water-resistant”, with tie-backs for when you want them open.
Sunjoy gives the size as an 11 x 13 ft roof and 10 x 12 ft post to post, but it doesn’t publish an overall height or a weight. Measure your space against the roof size.
The manual says to fix the gazebo to the ground “by using stake” on a lawn. For a deck or patio, Sunjoy’s FAQ advises expansion bolts “onto the wooden/concrete ground”, and the product page notes that wood and concrete installs are “without accessories”, so buy those anchors separately. The manual also warns: “Do not leave the gazebo where there is a risk of high wind”. It says “two people are required” for assembly, and a couple of ladders will make the roof much easier.
The warranty, per the manual, covers defects in workmanship and materials “for a period of 1 year from the date of purchase” for residential use. It excludes damage from “acts of nature, vandalism, misuse, or improper assembly”, and rust on hardware isn’t covered. Sunjoy also sells a replacement canopy set, netting and curtain for this model by item number.
Sunjoy Belcourt 11 x 13 ft Soft Top Gazebo with Netting and Curtains (A101012400)
Two-tier soft top on a black powder-coated steel frame, with mosquito netting and privacy curtains on separate rails.
2. Sunjoy Woodgrain Aluminum Soft Top Gazebo with Sunbrella Canopy, 11 x 13 ft (A101012801)
This is Sunjoy’s premium soft top. Instead of powder-coated steel posts, it has four 5 x 5 in aluminum posts with a woodgrain finish, galvanized steel components and wicker accents. Sunjoy calls the posts “rust-resistant”, and they look far more like a permanent structure than the usual round steel legs.
The canopy is Sunbrella fabric. Sunjoy says its “resistance to fading, weathering, UV exposure, and stains” helps the canopy keep its looks. That’s the main reason to pay more for this one, since fabric is the part of a soft top that wears out first.
The catch is that netting and curtains aren’t included. You get the curtain rails and a ceiling hook, and you buy the panels separately. Sunjoy publishes a full dimension table but no weight.
Sunjoy’s product page says to follow the manual “for canopy removal, seasonal storage, and weather precautions.” We couldn’t find this model’s manual online, so we’re going by Sunjoy’s FAQ, which advises expansion bolts on wood or concrete and says “Sunjoy suggests dismantling your product during inclement weather.” The same FAQ says a new product’s warranty is generally one year but that “warranties vary between products”, so check the terms in the box or ask Sunjoy.
Sunjoy Woodgrain Aluminum Soft Top Gazebo with Sunbrella Canopy, 11 x 13 ft (A101012801)
Woodgrain-finish aluminum posts and a Sunbrella canopy; curtain rails built in, netting and curtains sold separately.
3. Sunjoy 10.5 x 13 ft Brown and Tan 2-Tier Steel Gazebo with Mosquito Netting (A101012202)
This one is for shoppers who mostly want to keep bugs out. It’s a two-tier vented soft top with a brown powder-coated steel frame, brown and tan fabric, mosquito netting and a ceiling hook. Sunjoy calls the canopy “weather-resistant”.
Sunjoy publishes more measurements for this model than most: 12.8 x 10.5 ft overall, 11.6 x 9.6 ft inside between the posts, and 7.3 ft from the ground to the horizontal opening. It weighs 84.88 lbs, per Sunjoy.
Curtains aren’t included, and Sunjoy doesn’t say whether there’s a second rail for them. If you want privacy panels later, check the rails before you buy any.
For anchoring we have Sunjoy’s FAQ: expansion bolts on wood or concrete, and take the gazebo down during inclement weather. The FAQ puts a new product’s warranty at generally one year and says weather damage isn’t covered.
Sunjoy lists it on sunjoyonline.com but not on its sunjoyshop.com shop, so check that the listing you buy is item A101012202.
Sunjoy 10.5 x 13 ft 2-Tier Steel Gazebo with Mosquito Netting (A101012202)
Two-tier vented soft top on a brown powder-coated steel frame, with mosquito netting and a ceiling hook; no curtains.
4. ABCCANOPY Outdoor Patio Gazebo Double Roof Canopy with Mosquito Netting, 11 x 13 ft
ABCCANOPY’s double-roof gazebo is the non-Sunjoy option for a big patio. It has an iron frame “coated with anti-rust coating”, a ventilated double roof with netting between the tops, mosquito netting and extra hooks on the roof and corners. ABCCANOPY says the roof has “water leakage holes” to keep water from collapsing the top.
The drawback is how little ABCCANOPY publishes: just the 11x13 size label, with no overall dimensions, height or weight. Curtains aren’t included.
ABCCANOPY’s gazebo setup guide (a general guide, not this model’s manual) says to “use ground stakes” to secure the base and to “clear snow immediately after heavy snowfall”. Before storms, it says to reinforce the stakes or add tie-down ropes, and to store the canopy somewhere dry and ventilated when you won’t use it for a while. It says setup “requires two-person cooperation”. The guide doesn’t cover decks or concrete, so ask ABCCANOPY before you bolt it down. ABCCANOPY offers a “1-year warranty for damage under regular use conditions.”
5. MASTERCANOPY Outdoor Patio Gazebo with Mosquito Netting, 9 x 9 ft
Every other gazebo on this page is 10.5 x 13 ft or larger. If your patio is small, MASTERCANOPY’s 9 x 9 ft is the one to look at. MASTERCANOPY says its current model adds galvanized steel beams “to prevent weld corrosion”, eight triangular braces and thicker legs with expansion screws.
The canopy is “300D polyester fabric” that MASTERCANOPY rates at “UPF 50+”. It has a double-layer vented roof with built-in drainage holes, and four removable zippered mesh walls. There are no curtains, and like ABCCANOPY, MASTERCANOPY publishes size labels but no dimensions, height or weight.
MASTERCANOPY’s anchoring guide is the most specific of any maker here. It says “ground stakes or auger-style anchors” on grass, lag screws or bolts “attached directly to the gazebo’s deck joists” on a deck, and “concrete anchors or expansion bolts” on concrete. What it doesn’t give is any advice on when to take the canopy down, so follow the weather advice below.
The warranty is “1 year for free replacements of the frame. 6 months for free replacements of other parts.”
6. Sunjoy Havana 11 x 13 ft Hexagon Gazebo with 2-Tier Dome Canopy (A101006400)
This is the hexagon gazebo we used to review as the Sunjoy Madison. The Madison name is gone. Sunjoy now lists it as the Sunjoy 11 ft. x 13 ft. Brown Steel Hexagon Gazebo with 2-Tier Dome Canopy (A101006400), and the Amazon listing calls it the Havana. Our Sunjoy Madison review has the full story.
It’s the pick for anyone who wants a pavilion look rather than a box. You get a brown powder-coated steel frame, a khaki two-tier dome canopy, low railing panels, a serving shelf and hooks for hanging baskets. Netting and curtains aren’t included.
The manual includes stakes for a lawn and warns: “Do not leave the gazebo where there is a risk of high wind”. Sunjoy’s FAQ advises expansion bolts on wood or concrete, and those aren’t in the hardware pack. The manual says “do not assemble this item alone.” It also says the fabric “meets CPAI-84 specifications for flame resistance. It is not fire proof.”
The one-year warranty covers defects for the original purchaser and excludes “acts of nature, vandalism, misuse, or improper assembly”. The catch is availability: Sunjoy’s own listing is tied to a Canadian retail channel, and we couldn’t confirm a US seller.

Sunjoy Havana 11 ft. x 13 ft. Brown Steel Hexagon Gazebo with 2-Tier Khaki Dome Canopy
Supported by durable, powder-coated steel frames which is rust-resistant and can withstand various weather elements
What we like
- Hexagon footprint with railing panels
- Adjustable serving shelf and basket hooks
- Powder-coated steel frame, 2-tier dome canopy
- Fabric meets CPAI-84 flame resistance, per Sunjoy
Worth noting
- No netting or curtains included
- Expansion bolts for decks and patios not included
- Sunjoy says not to leave it up in high wind
- 1-year warranty excludes weather damage

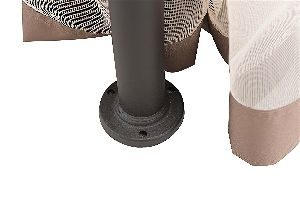

Anchoring and Weather: Keeping a Soft Top Standing
A soft top gazebo is a big sail on four legs. It needs anchoring every time you put it up, and it needs taking down when the weather turns. Here’s what the makers on this page say, by surface.
On a lawn: stakes. Sunjoy’s Belcourt manual says to fix the gazebo “by using stake”, ABCCANOPY says to “use ground stakes” to secure the base, and MASTERCANOPY suggests “ground stakes or auger-style anchors”.
On a wood deck: Sunjoy advises expansion bolts “onto the wooden/concrete ground”. MASTERCANOPY says lag screws or bolts can go “directly to the gazebo’s deck joists”.
On concrete: Sunjoy again says expansion bolts, and MASTERCANOPY says “concrete anchors or expansion bolts”.
None of these makers gives bolt or screw sizes for these models, and deck or concrete hardware usually isn’t in the box. Use the anchoring hardware and instructions from your gazebo’s maker. Whatever the surface, pick the flattest spot you have, because a frame that goes up out of square is a headache.
When to take the canopy down
Sunjoy is blunt about it: “Sunjoy suggests dismantling your product during inclement weather.” Its soft top manuals add “Do not leave the gazebo where there is a risk of high wind”. ABCCANOPY says to “clear snow immediately after heavy snowfall”, to reinforce the stakes or add ropes before storms, and to store the canopy dry when you won’t use it for a while. Sunjoy’s FAQ also says its warranty doesn’t cover weather damage. In other words, if a storm is in the forecast, the fabric comes off.
Rain is the everyday problem. Water that pools on a flat stretch of canopy adds weight and strains the fabric, which is what drain holes are for, per Sunjoy (not every model has them). If you do find a puddle up there after a storm, push it off from underneath before it sits.
If your yard gets real wind, a fabric roof may simply be the wrong tool; our guide to gazebos for high winds covers the sturdier options.
No open flames under the canopy
Sunjoy’s soft top manuals say: “Keep all flame and heat sources away from this gazebo fabric.” The U.S. Fire Administration tells you to keep grills “out from under eaves and overhanging branches”, and a fabric roof is an overhead covering too. None of the makers on this page allows grills, fire pits or heaters under their canopies, so keep open flames out from under the canopy. For light, hang an electric lantern from the ceiling hook instead of candles.
Permits, HOA rules and digging
Permit, zoning (setback) and HOA rules vary by town. Check with your local building department and your HOA before you put up a gazebo. If you’ll dig footings or drive long ground anchors, contact 811 a few business days ahead; the service is free.
Soft Top vs Hard Top
Sunjoy, which makes both, puts it well: a hardtop “is designed to stay installed for long periods”, while a soft top may need “frequent seasonal removal or replacement”. Its buying guide adds that “high snow areas require metal hardtops”. A soft top gives you a lighter structure with a fabric roof you can replace, and you take it down in bad weather. A hardtop gives you a roof that can stay up. If you want the permanent option, go for a hardtop in metal or one of the wood gazebo kits we’ve reviewed.
If you need shade you can carry to a game or a party, a pop-up canopy is the better fit.
For pergolas, start with our pergola kits guide.
For every other way to shade a patio, see our guide to gazebos, shade sails and umbrellas.
Frequently Asked Questions
Can you leave a soft top gazebo up all year?
Not according to its makers. Sunjoy suggests dismantling its gazebos during inclement weather and says soft tops may need seasonal removal. ABCCANOPY says to store the canopy in a dry, ventilated spot during long periods of non-use. If you want a roof that stays up through winter, look at a hardtop gazebo.
How do you anchor a soft top gazebo on grass, a deck or concrete?
On grass, use stakes; Sunjoy and ABCCANOPY both specify them, and MASTERCANOPY also mentions auger-style anchors. On a deck or concrete, Sunjoy advises expansion bolts, and MASTERCANOPY says lag screws or bolts into the deck joists, or concrete anchors on a patio. Use the hardware your gazebo’s maker specifies, since deck and concrete anchors often aren’t included.
Are soft top gazebos waterproof?
No maker on this page calls its canopy waterproof. Sunjoy says “weather-resistant”, and its curtains “water-resistant”. Drain holes or grommets help shed rain on models that have them, but Sunjoy notes that not every gazebo does. Take the canopy down before heavy storms.
Can you put a grill under a soft top gazebo?
No. Sunjoy’s soft top manuals say to keep all flame and heat sources away from the fabric, and none of the makers here allows grills, fire pits or heaters under the canopy. The U.S. Fire Administration also says to keep grills out from under eaves and overhanging branches.
Can you buy just a replacement canopy?
Often, yes. Sunjoy sells replacement canopies, netting and curtains by model number, including a canopy for its discontinued cabin-style L-GZ933PST. Its FAQ suggests searching your item number to find parts that fit, so keep the manual or note the number on the box.
Do you need a permit for a gazebo?
It depends on where you live. Permit, zoning and HOA rules vary by town, so check with your local building department and your HOA first. If you’ll dig footings or drive long anchors, contact 811 a few business days before you dig.
Our Recommendation
For most patios, the Sunjoy Belcourt 11 x 13 ft is the soft top to buy. It includes netting and curtains on separate rails, its manual tells you how to anchor it, and Sunjoy still sells it. If you want a canopy that keeps its color and a frame that looks more permanent, step up to Sunjoy’s Sunbrella aluminum model. Whichever you choose, anchor it to the surface you have and take the fabric down before bad weather.
Previously recommended

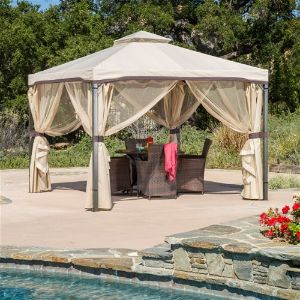

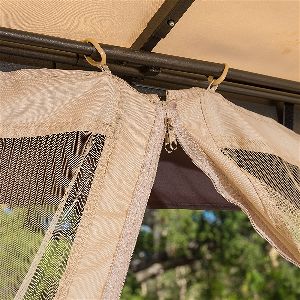

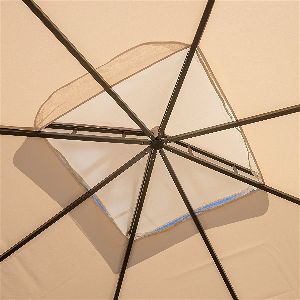

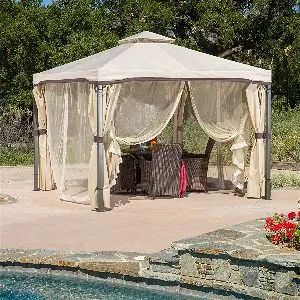

- Sonoma Outdoor 10 x 10 ft soft top with net drapery (the listing now carries the Christopher Knight Home name): we can no longer confirm it’s sold by its maker or a major retailer, and we couldn’t find anchoring guidance from its maker. We now recommend the Sunjoy Belcourt 11 x 13 ft instead.

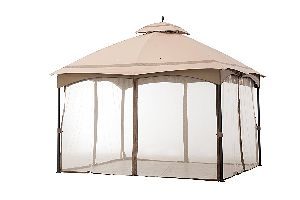

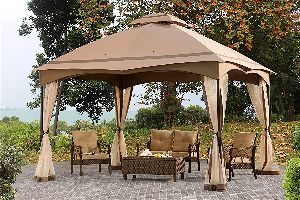

- Sunjoy 12 x 10 ft cabin-style soft top (L-GZ933PST): no longer in Sunjoy’s catalog, though Sunjoy still sells a replacement canopy for it (item A111006601). We now recommend the Sunjoy 10.5 x 13 ft 2-tier instead.

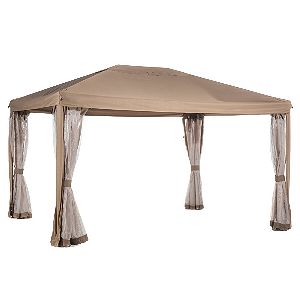

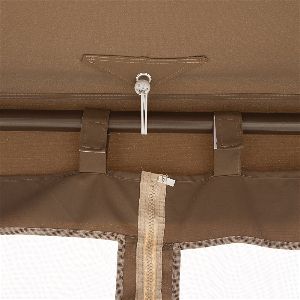

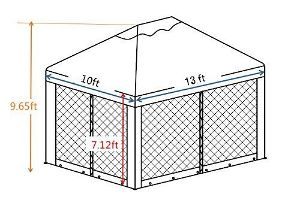

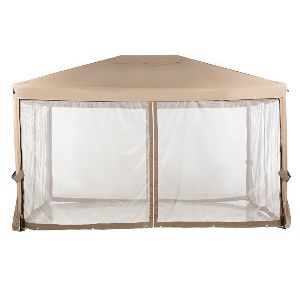

- Abba Patio 10 x 13 ft soft top: Abba Patio’s own store no longer lists a gazebo. We now recommend the ABCCANOPY 11 x 13 ft instead.

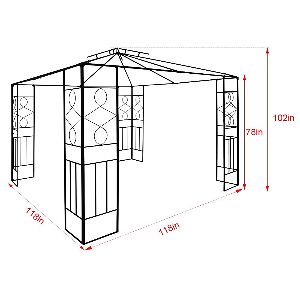

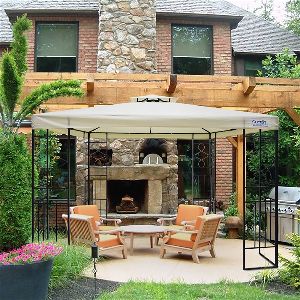

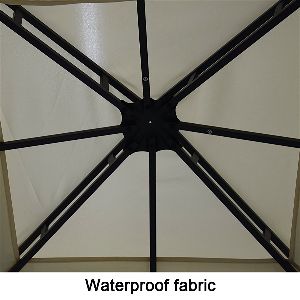

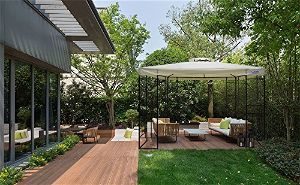

- Quictent 10 x 10 ft soft top: the listing is gone. We now recommend the MASTERCANOPY 9 x 9 ft instead.

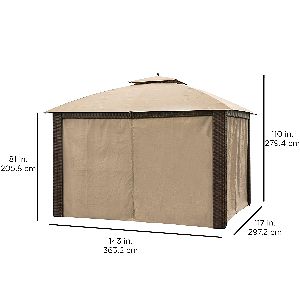

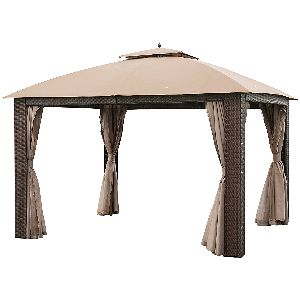

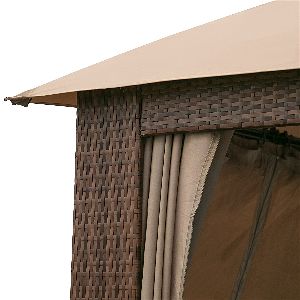

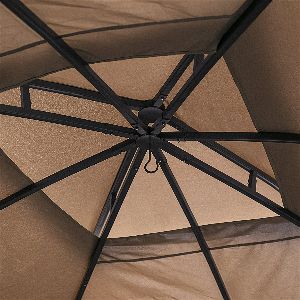

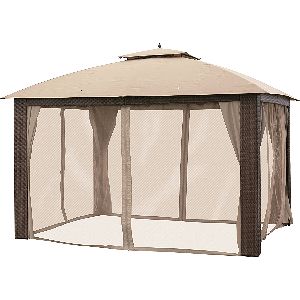

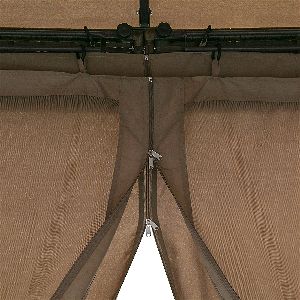

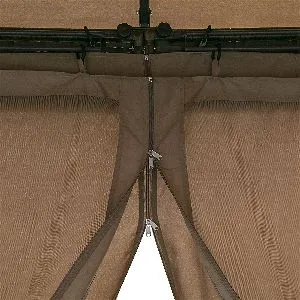

- Best Choice Products 12 x 10 ft wicker soft top: the listing is gone. We now recommend the Sunjoy Sunbrella aluminum 11 x 13 ft instead.
